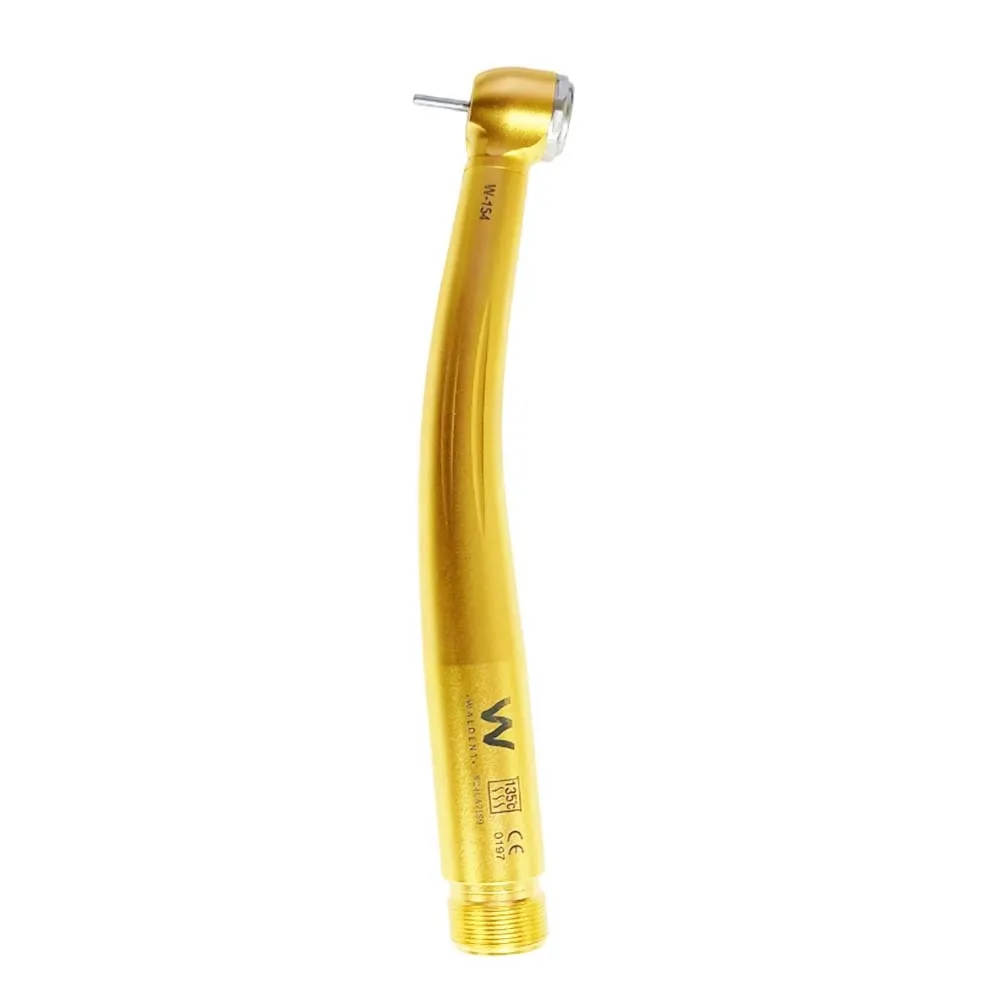

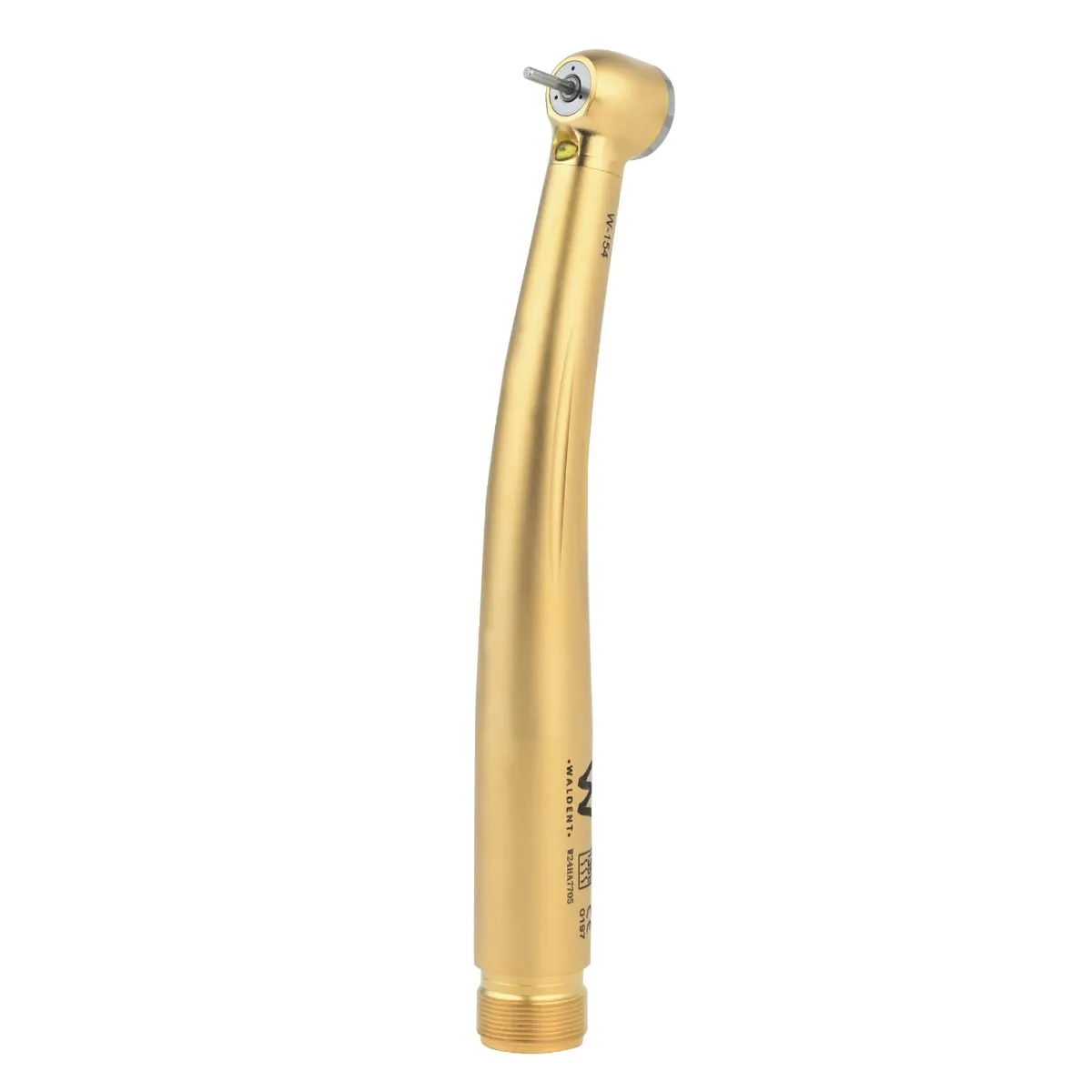

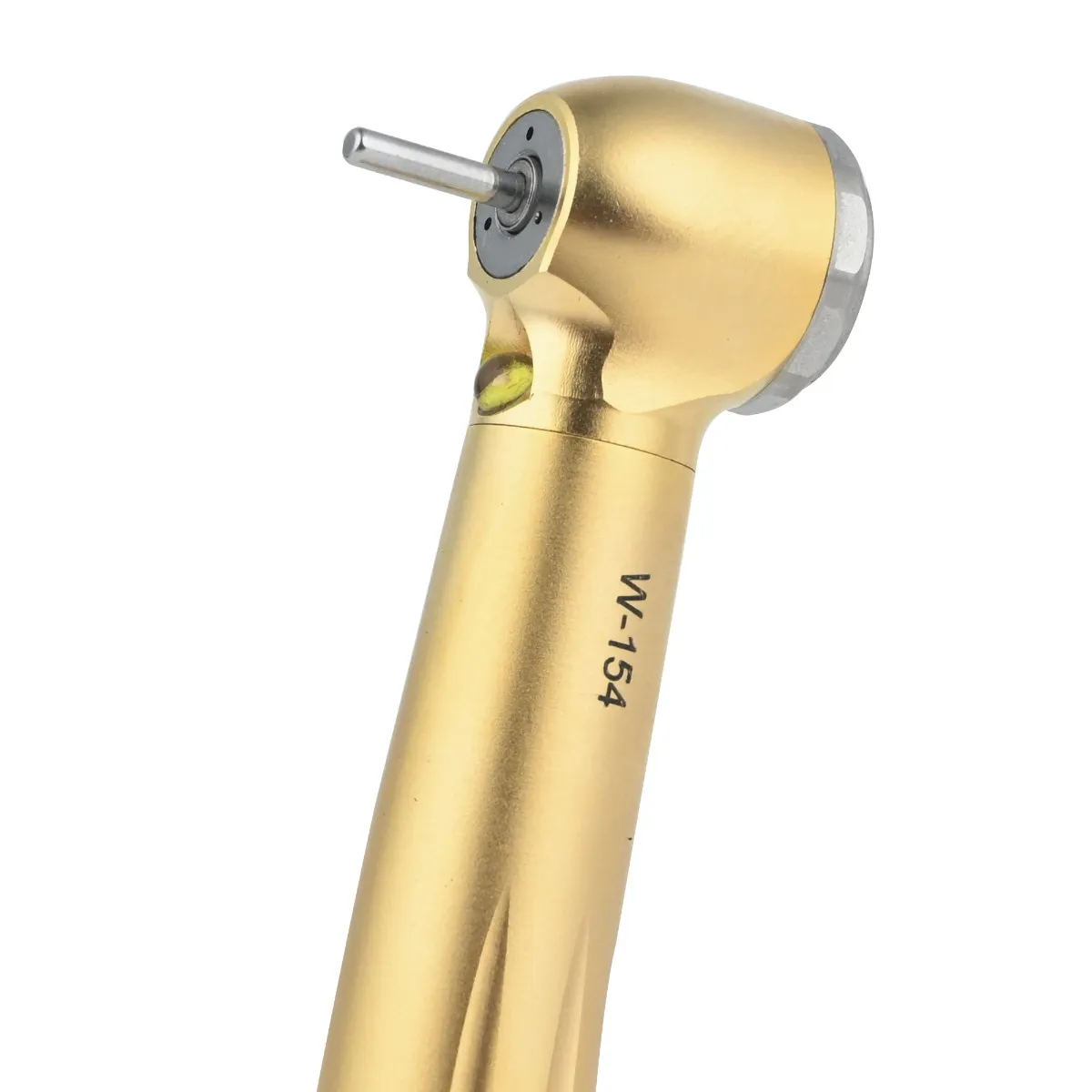

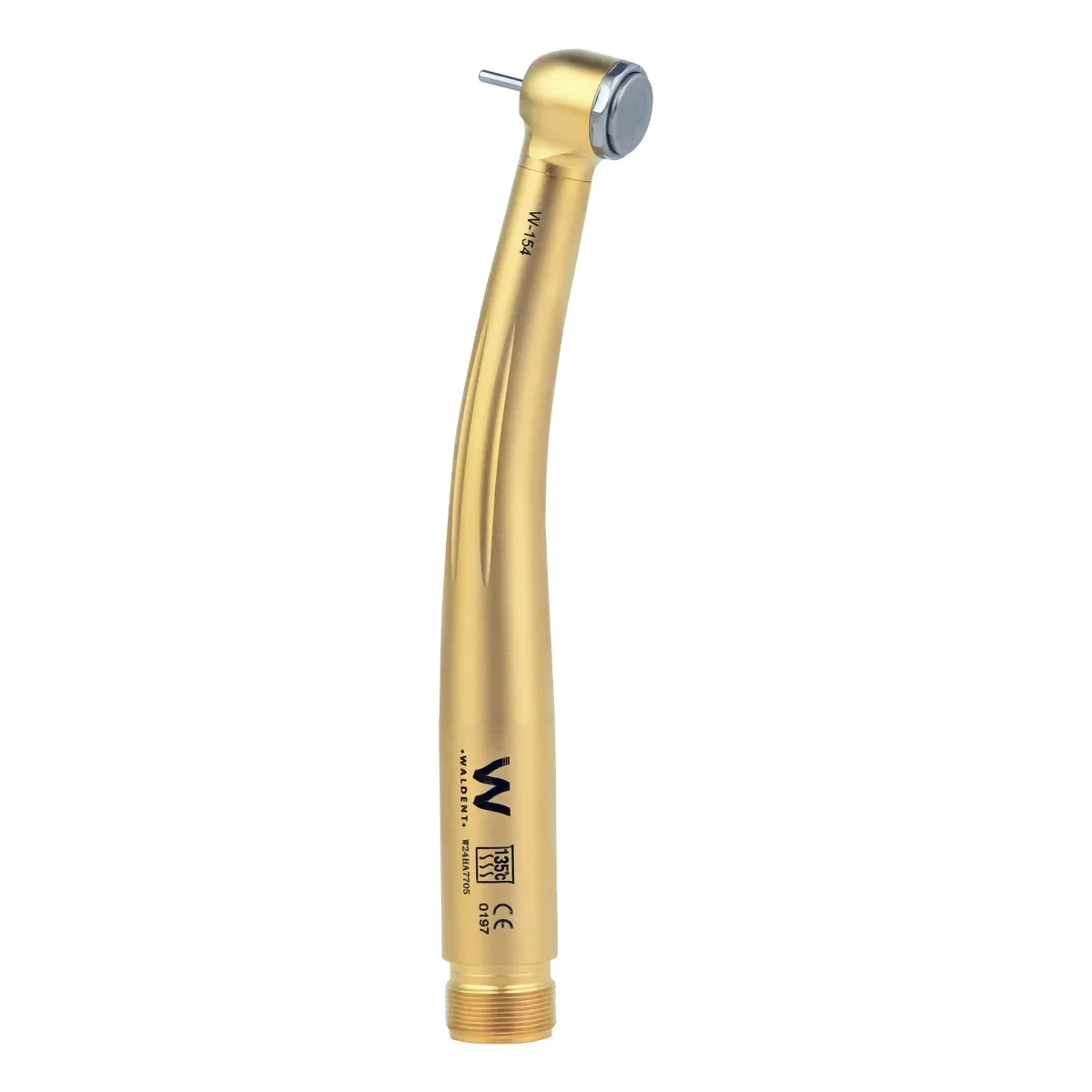

Waldent AURA Gold LED Special Edition Airotor (W-154)

Waldent Gold LED Special Edition Airotor (W-154) is a high-speed handpiece developed on the principle of delivering precision to the dentist. The airotor handpiece is designed to rest comfortably in hand to allow the minute and precision hand movements that are required to carry out the delicate dental procedures. With the innovative technique, those hard-to-reach and hard-to-see places are more easily accessible, thus streamlining and shortening procedures, making it possible to achieve results with greater accuracy and precision.

• • LED Light: Integrated high-intensity LED for enhanced visibility during procedures.
  • High Speed: Delivers efficient performance with high-speed capabilities for quick tooth preparation.
  • Ergonomic Design: Lightweight and ergonomic shape for improved comfort and control during use.
  • Durable Construction: Made from high-quality materials for longevity and reliability in clinical settings.
  • Easy Bur Change: Quick and straightforward bur change mechanism for increased efficiency.
  • Smooth Operation: Precision engineering ensures minimal vibration and noise during use.
  • Water Spray Function: Equipped with a water spray feature to cool the bur and improve patient comfort.
  • Compatible: Designed to be compatible with standard dental units, ensuring versatility.

• Connection Type: Borden 2-Hole
• Operation: Push Button Type
• Head Type: Super Torque Head
• Lighting: LED Handpiece
• Water Spray: Triple Hole Water Spray
• Drive Air Pressure: <0.25Mpa (2.5-2.8 kgf/cm²)
• Water Pressure: 0.05 – 0.2 Mpa (0.5-2.0 kgf/cm²)
• Air Consumption: 40±5 NL/min (at 0.25 MPa)
• Max Rotation Speed: 330,000-420,000 RPM
• Finish: Matt finish
• Head Size: Ø11mm x H14mm
• Total Length: 12.4 cm

• 1 x Waldent AURA Gold LED Special Edition Airotor (W-154)
• 1 x Wrench
• 1 x Manual

1. Preparation: Ensure the airotor is clean and properly sterilized before use.
2. Connection: Attach the airotor to the dental unit, ensuring a secure fit to the air and water supply.
3. Adjust Settings: Adjust the speed and air pressure settings on the dental unit according to the specific procedure requirements.
4. Test Functionality: Briefly run the airotor to check for proper function and to expel any trapped air.
5. Procedure: Use the airotor for dental procedures such as cavity preparation, cutting, or polishing, ensuring to maintain appropriate angulation and pressure.
6. Cooling: Monitor the temperature and use water spray as needed to cool the bur during operation.
7. Post-Use Care: After the procedure, clean the airotor and follow the manufacturer’s instructions for sterilization.
8. Storage: Store the airotor in a clean, dry place until the next use.

• Manufacturer warranty of 6 month is applicable to this product.
• Service and warranty are handled at manufacturer’s discretion.
